Flow
Vysoce univerzální LED řešení pro zlepšování života lidí v městském prostředí

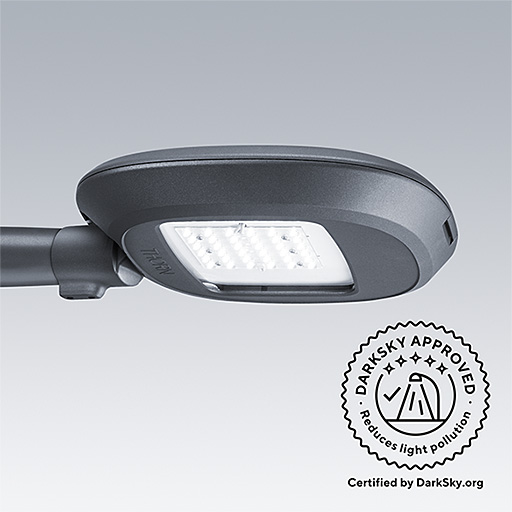

- IDA Dark Sky Approved
- *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures, +/- 10° maximum tilt only. Luminaires must be mounted as photometered.
- Svítidlo nabízí velkou rozmanitost způsobů montáže, sklonů, možnosti stmívání a regulace tak, aby vyhovovalo jakémukoliv použití v městském prostředí s konzistentním konstrukčním vzhledem
- Dává městskému prostoru jedinečnou identitu díky estetickým sestavám
- Zkonstruováno tak, aby respektovalo biodiverzitu a hvězdnatou oblohu, a současně zajišťuje příjemné a teplé prostředí (3000K, 2700K, 2200K)
- Future proof luminaire with removable control gear and optic also compatible with any existing CMS options on the market thanks to the ZHAGA, 7 pin NEMA socket option
- Ochrana proti rázům do 10 kV jako standard a snadná montáž díky otevírání a výměně desky předřadníku bez použití nástrojů
- OTHER OPTIONS ARE AVAILABLE (colour temperature, controls, colour...). See myProduct for configuration options
Materials and Finish
Housing, canopy, spigot: die-cast aluminium (MCA and MSU: EN AC-47100; others EN AC-44300). Screws treated with Geomet anti-galvanic coating. MTP, MTPA, MLE : standard corrosion class C5 according to ISO 9223: 2012. Powder coated texturized anthracite grey (close to RAL7043), and 50 other RAL possibilities
Glass: 6 mm thick
Fixings: stainless steel - with anti-galvanic treatment
Installation and Mounting
Montáž na vrch sloupu: Ø60 nebo Ø76mm, nastavitelný úhel sklonu: 0° až +10° (kroky 5°)
Boční montáž: Ø60 nebo Ø42mm, nastavitelný úhel sklonu: -20° až +0° (kroky 5°)
Specification
To specify state:
Decorative LED lantern with great versatility. With up to15360 Lm, efficiency up to155 Lm/W. Offering 6 mounting variants : post top amenity, post top, lateral, suspended, wall mounted and catenary. Wide optical offer with efficient Street R-PEC and Area lighting optics, 26 light distributions (symmetrical and asymmetrical) with a performance clear or prismatic comfort variants. 4000K, 3000K, 2700K, 2200K color temperatures, as standard. Internal back light control louvre, as an option. 10KV surge protection, as standard. Street variant : post top mounting for diameter 60mm or 76mm, lateral mounting for diameter 60mm or 42 mm. Tilting possibilities from -20° to +10°. Amenity variant : post top mounting for diameter 60mm, 76mm with adaptator. Suspended through 34G. DALI and BS as standard, or LRT, PL, PN7 socket, ZU Zhaga socket up as standard, ZD Zhaga socket down (on request), ZUD Zhaga socket up & down (on request). ZD4i certified. Offering dedicated columns.
As Thorn Flow
▼ Flow, úzká silniční optika, upevnění na vrch sloupu
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
<FW 24L35 740 NR BS 3550 HFX CL2 T60F -> | 28 | 4034 | LED | 9.60 | 96666290 | ||||
FW 12L105-740 NR CL2 T60F ANT | 41 | 5265 | LED | 8.50 | 96635480 | ||||
FW 12L35 740 NR CL2 T60F ANT | 15 | 2028 | LED | 8.40 | 92942690 | ||||
FW 12L50-740 NR CL2 T60F ANT | 20 | 2793 | LED | 8.00 | 96635501 | ||||
FW 12L70-740 NR CL2 T60F ANT | 28 | 3754 | LED | 8.00 | 96635502 | ||||
FW 24L105-740 NR CL2 T60F ANT | 79 | 10219 | LED | 8.50 | 96635483 | ||||
FW 24L35-740 NR CL2 T60F ANT | 28 | 4034 | LED | 8.50 | 96635481 | ||||
FW 24L50 740 NR CL2 T60F ANT | 38 | 5537 | LED | 8.50 | 92940344 | ||||
FW 24L70-740 NR CL2 T60F ANT | 52 | 7398 | LED | 8.50 | 96635482 | ||||
FW 36L105-740 NR CL2 T60F ANT | 117 | 15360 | LED | 8.50 | 96635488 | ||||
FW 36L35-740 NR CL2 T60F ANT | 39 | 6036 | LED | 8.50 | 96635484 | ||||
FW 36L50-740 NR CL2 T60F ANT | 55 | 8311 | LED | 8.50 | 96635485 | ||||
FW 36L70-740 NR CL2 T60F ANT | 77 | 11109 | LED | 8.50 | 96635486 |
