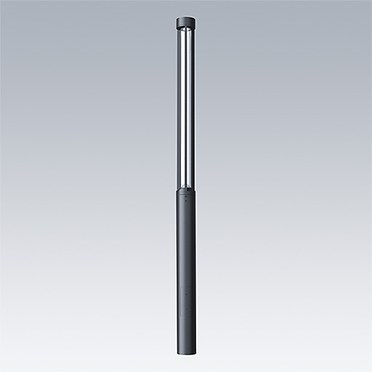

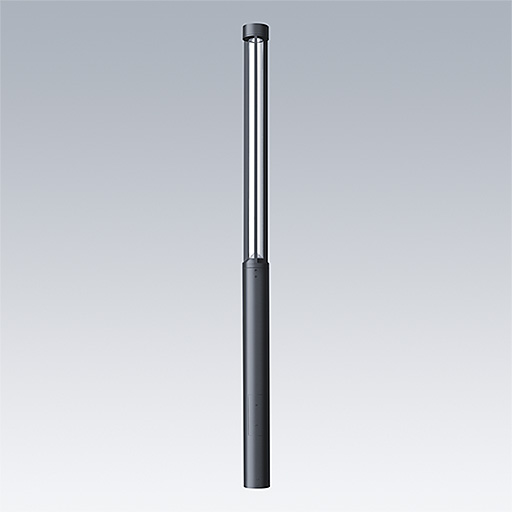

Cesar Strut
Svítidlo Cesar Strut má stylové robustní provedení ve spojení s výkonností, dokonalé pro místa pro chodce, parky a městské prostory
- Stylové svítidlo instalované na stožáru, které je k dispozici ve čtyřech standardních barvách Thorn (šedá, antracitová, černá, bílá)
- Polykarbonátový difuzor odolný proti vandalismu poskytuje měkké osvětlení bez oslňování pro příjemnější venkovní prostředí
- K dispozici ve verzi 2700K, 3000K, 4000K a CRI90
- Cesar Strut B je k dispozici s konektivitou DALI2 přímo na desce
Materials and Finish
Die-cast and extruded aluminium housing.
Polycarbonate diffusor.
Stainless steel screws.
Silicone gaskets.
Double Powder Paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).
Installation and Mounting
Installation method available :
- Installation on concrete ground with base accessory (96700286 - GY | 96700287 - ANT | 96701174 - WH | 96701175 - BK) (fixing anchors M16 not delivered with product)
- Recessed installation with flange accessory to be ordered separately (96700289)
Delivered pre-wired and with IP68 gel connector.
Maximum cable size : 2x1mm² - 2x1.5mm².
Specification
To specify state:
Robust circular lighting column available in four standard colours (grey, anthracite, black, white) ideal for blending into a variety of spaces such as squares, parks and residential areas. This vandal-resistant column is also ideal for public spaces. Omni-directional distribution for easy signage in parks and squares. Available in 2700K, 3000K and 4000K with a CRI of 90. Column can be fixed to the ground using an accessory (to be ordered separately), or to an accessory (to be ordered separately) to be embedded in concrete. Integrated DALI2 driver.
Robustness: IP65 & IK10.
As Thorn Cesar Strut
▼ Cesar Strut
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR STRUT H3500 1L927 S/S HFX ANT | 55 | 3938 | LED | 31.28 | 96700277 | ||||
| CESAR STRUT H3500 1L927 S/S HFX BK | 55 | 3938 | LED | 31.28 | 96700275 | ||||
| CESAR STRUT H3500 1L927 S/S HFX GY | 55 | 3938 | LED | 31.28 | 96700276 | ||||
| CESAR STRUT H3500 1L927 S/S HFX WH | 55 | 3938 | LED | 31.28 | 96700274 | ||||
| CESAR STRUT H3500 1L930 S/S HFX ANT | 55 | 4235 | LED | 31.28 | 96700285 | ||||
| CESAR STRUT H3500 1L930 S/S HFX BK | 55 | 4235 | LED | 31.28 | 96700283 | ||||
| CESAR STRUT H3500 1L930 S/S HFX GY | 55 | 4235 | LED | 31.28 | 96700284 | ||||
| CESAR STRUT H3500 1L930 S/S HFX WH | 55 | 4235 | LED | 31.28 | 96700282 | ||||
| CESAR STRUT H3500 1L940 S/S HFX ANT | 55 | 4352 | LED | 31.28 | 96700281 | ||||
| CESAR STRUT H3500 1L940 S/S HFX BK | 55 | 4352 | LED | 31.28 | 96700279 | ||||
| CESAR STRUT H3500 1L940 S/S HFX GY | 55 | 4352 | LED | 31.28 | 96700280 | ||||
| CESAR STRUT H3500 1L940 S/S HFX WH | 55 | 4352 | LED | 31.28 | 96700278 |
▼ Cesar Strut, accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR STRUT FBASE S300 ANT | 6.88 | 96700287 | |||||||
| CESAR STRUT FBASE S300 BK | 6.88 | 96701175 | |||||||
| CESAR STRUT FBASE S300 GY | 6.88 | 96700286 | |||||||
| CESAR STRUT FBASE S300 WH | 6.88 | 96701174 | |||||||
| CESAR STRUT FLANGE H800 | 11.07 | 96700288 |
