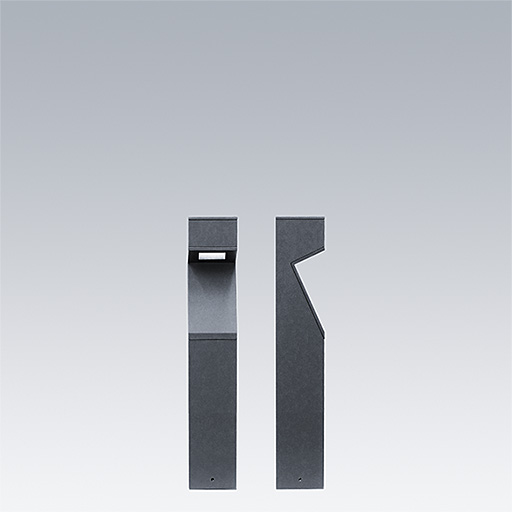

Axyl Geo

  • Axyl Geo

Axyl Geo je sloupek nabízející prvotřídní výrazný design pro použití v okolí budov

  • Sloupek v prvotřídním provedení, k dispozici ve dvou výškách (600, 950mm) a čtyřech standardních barvách Thorn (šedá, antracit, černá, bílá)
  • Ideální pro stezky, vyhledávání cesty pomocí vyzařovací charakteristiky 180° vytvářené speciálním prizmatickým sklem. Pro zvýšený vizuální komfort je jako příslušenství k dispozici kryt pro ochranu proti oslňování (96700532)
  • K dispozici ve verzi 2700K, 3000K, 4000K a CRI90
  • Axyl Geo je k dispozici s konektivitou DALI2 přímo v systému

Materials and Finish

Die-cast aluminium housing.
Prismatic toughened glass.
Stainless steel screws.
Silicone gaskets.
Double Powder Paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).

Installation and Mounting

Installation method available :
- Installation on concrete ground (fixing anchors M6 not delivered with product)
- Recessed installation with flange accessory to be ordered separately (96700572)
Delivered pre-wired and with IP68 gel connector.
Maximum cable size : 5x1mm² - 5x1.5mm²

Specification

To specify state:
Bollard with a unique, premium design available in two heights (600mm and 950mm) and four standard colors (gray, anthracite, black, white). An asymmetrical distribution facilitates beaconing in narrow aisles, and an accessory is available to reduce glare (96700532). Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for private residential applications.
Bollard can be fixed to the ground, or to an accessory (to be ordered separately) to be embedded in concrete.
Integrated DALI2 driver.
Robustness: IP65 & IK06.
As Thorn Axyl Geo

New Product
LumExpress Product
eControl Product

▼ Axyl Geo

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
AXYL GEO H600 1L 927 A/S HFX ANT16552LED6.9696700511
AXYL GEO H600 1L 927 A/S HFX BK16552LED6.9696700509
AXYL GEO H600 1L 927 A/S HFX GY16552LED6.9696700510
AXYL GEO H600 1L 927 A/S HFX WH16552LED6.9696700508
AXYL GEO H600 1L 930 A/S HFX ANT16587LED6.9696700519
AXYL GEO H600 1L 930 A/S HFX BK16587LED6.9696700517
AXYL GEO H600 1L 930 A/S HFX GY16587LED6.9696700518
AXYL GEO H600 1L 930 A/S HFX WH16587LED6.9696700516
AXYL GEO H600 1L 940 A/S HFX ANT16609LED6.9696700515
AXYL GEO H600 1L 940 A/S HFX BLK16609LED6.9696700513
AXYL GEO H600 1L 940 A/S HFX GRY16609LED6.9696700514
AXYL GEO H600 1L 940 A/S HFX WH16609LED6.9696700512
AXYL GEO H950 1L 927 A/S HFX ANT16552LED6.9696700523
AXYL GEO H950 1L 927 A/S HFX BK16552LED6.9696700521
AXYL GEO H950 1L 927 A/S HFX GY16552LED6.9696700522
AXYL GEO H950 1L 927 A/S HFX WH16552LED6.9696700520
AXYL GEO H950 1L 930 A/S HFX ANT16587LED6.9696700531
AXYL GEO H950 1L 930 A/S HFX BK16587LED6.9696700529
AXYL GEO H950 1L 930 A/S HFX GY16587LED6.9696700530
AXYL GEO H950 1L 930 A/S HFX WH16587LED6.9696700528
AXYL GEO H950 1L 940 A/S HFX ANT16609LED6.9696700527
AXYL GEO H950 1L 940 A/S HFX BK16609LED6.9696700525
AXYL GEO H950 1L 940 A/S HFX GY16609LED6.9696700526
AXYL GEO H950 1L 940 A/S HFX WH16609LED6.9696700524

▼ Axyl Geo, accessories

Description   Wt (kg)SAP Code
AXYL GEO FLANGE D1200.5396700572
AXYL GEO GLARE BK0.0296700532
