Prisma

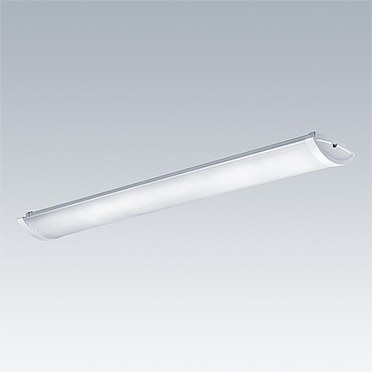

Slim LED luminaire with curved prismatic diffuser for surface mounting
- Through wiring (TW) variants available
- Luminaire robuste et étanche IP44 qui élargit les applications aux réfectoires, cuisines, salles de blanchisserie, garages etc
- Curved frosted (FR) prismatic diffuser for more visual comfort (wide light distribution, reduced glare)
- Highly efficient LED variants (up to 120 lm/W), sensor variants for even more energy saving
- Available in two lengths (600mm / 1200mm)
Matériaux et finition
Body: Pre-painted white 0.7mm galvanised steel.
Endcaps: Shockproof ASA plastic, white.
Diffuser: Prismatic acrylic.
Installation et montage
Keyhole fixing positions Ø14mm for direct mounting to ceiling, wall or via bracket. Fixing centres: 500mm (600mm fixture). Two cable entries Ø19mm in the centre of the body and a knockout hole in the endcaps. Grommets included. Cable capacity 3 x 2 x 2.5mm².
Prescription
To specify state:
Slim LED luminaire with curved frosted prismatic diffuser for surface mounting. Single and through wiring variants. Robust and IP44 sealed housing.
As Thorn Prisma.
New Product
LumExpress Product
Produit eControl
▼ Prisma
| Description | Type | Poids (kg) | Code SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| PRISMA LED3000-830 HF FR L600 | LED | 1.50 | 96630830 | ||||||
| PRISMA LED3000-840 HF FR L600 | LED | 1.50 | 96630824 | ||||||
| PRISMA LED4400-830 HF FR L1200 | LED | 2.72 | 96630831 | ||||||
| PRISMA LED4400-840 HF FR L1200 | LED | 2.72 | 96630825 | ||||||
| PRISMA LED6200-830 HF FR L1200 | LED | 2.72 | 96630832 | ||||||
| PRISMA LED6200-840 HF FR L1200 | LED | 2.72 | 96630826 |
▼ Prisma, câblage traversant
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| PRISMA LED3000-830 HF FR L600 TW | 27 | 2850 | LED | 1.52 | 96630833 | ||||
| PRISMA LED3000-840 HF FR L600 TW | 27 | 3100 | LED | 1.52 | 96630827 | ||||
| PRISMA LED4400-830 HF FR L1200 TW | 35 | 3900 | LED | 2.81 | 96630834 | ||||
| PRISMA LED4400-840 HF FR L1200 TW | 35 | 4250 | LED | 2.81 | 96630828 | ||||
| PRISMA LED6200-830 HF FR L1200 TW | 54 | 5700 | LED | 2.81 | 96630835 | ||||
| PRISMA LED6200-840 HF FR L1200 TW | 54 | 6200 | LED | 2.81 | 96630829 |
▼ Prisma, gradable
| Description | Type | Poids (kg) | Code SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| PRISMA LED3000-830 HFIX FR L600 | LED | 1.50 | 96630842 | ||||||
| PRISMA LED3000-840 HFIX FR L600 | LED | 1.50 | 96630836 | ||||||
| PRISMA LED4400-830 HFIX FR L1200 | LED | 2.72 | 96630843 | ||||||
| PRISMA LED4400-840 HFIX FR L1200 | LED | 2.72 | 96630837 | ||||||
| PRISMA LED6200-830 HFIX FR L1200 | LED | 2.72 | 96630844 | ||||||
| PRISMA LED6200-840 HFIX FR L1200 | LED | 2.72 | 96630838 |
▼ Prisma, gradable, câblage traversant
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| PRISMA LED3000-830 HFIX FR L600 TW | 54 | 5700 | LED | 1.52 | 96630845 | ||||
| PRISMA LED3000-840 HFIX FR L600 TW | 27 | 3100 | LED | 1.52 | 96630839 | ||||
| PRISMA LED4400-830 HFIX FR L1200 TW | 35 | 3900 | LED | 2.81 | 96630846 | ||||
| PRISMA LED4400-840 HFIX FR L1200 TW | 35 | 4250 | LED | 2.81 | 96630840 | ||||
| PRISMA LED6200-830 HFIX FR L1200 TW | 54 | 5700 | LED | 2.81 | 96630847 | ||||
| PRISMA LED6200-840 HFIX FR L1200 TW | 54 | 6200 | LED | 2.81 | 96630841 |
▼ Prisma, avec détecteur
| Description | Type | Poids (kg) | Code SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| PRISMA LED4400-830 HF FR MWS L1200 | LED | 2.73 | 96630848 | ||||||
| PRISMA LED4400-840 HF FR MWS L1200 | LED | 2.73 | 96630849 |
