Altis Gen5

Installation and Mounting

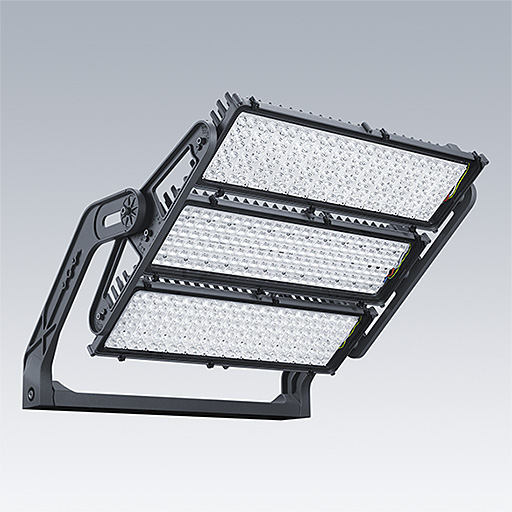

Bracket mounted using different fixing points (one M20 screw or two M14 screws). Frame fixed to stirrup with M10 Hex screw with the possibility to move (100mm) the position horizontally (available only on 3 and 2 LED modules stirrup version). Tiltable LED modules fixed on frame via M8 Hex screws. Reversable stirrup allows 'under slung' mounting and different mounting configurations including suspension, wall mounting, surface mounting, roof mounting. The LED modules are pre-wired to a distribution box with an easy clamping connection system.
A separately supplied gearbox can be installed remotely up to 200m from the luminaire and is equipped with four different cable glands - 1 x M25 cable gland accepting cable diameter between 10 mm and 17 mm and wiring with plug-in terminals for wires up to 2,5mm² for mains supply (220-400V / 50-60Hz), 2 x M16 cable glands accepting cable diameter between 5 mm and 10 mm for control IN/OUT and 1xM32 cable gland accepting cable diameter between 13 mm and 21 mm wiring with plug-in terminals for wires up to 2,5mm² (one cable of 7-cores at length of customer choice not supplied by Thorn and used for electrical connection to the floodlight - 8-cores where NTC is used) – and LED signal to indicate the status of the gearbox. Four holes in power supply housing corners allow different mounting options, in accordance with the installation instructions.
A connection / junction box is included with 2 and 3 module versions.
Standalone 1 module versions available with integrated 1 channel 600W gearbox included and factory pre-wired and mounted on the rear of the luminaire. This version is not suitable for use in Swimming Pool Halls (use separate 1, 2 or 3 module type with remote mounted gearbox).
A precision aiming device is available and adjustable on the top or bottom of each LED module.

Specification

To specify state:

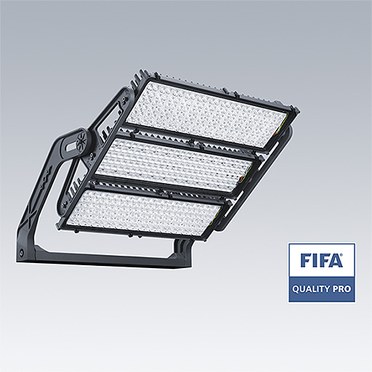

High power LED floodlight for sports and area lighting. With a wide range of CCT/CRI/TLCI (3000K, 4000K and 5700K, CRI from 70 to 90+ and TLCI up to 90+) to cover all the application requirements and flicker free operation suitable for HDTV broadcasting. The floodlight allows optics to be mixed and has tiltable LED modules to optimize lighting designs and minimize number of floodlights in an installation. Each module can be individually tilted for optimum control. Compact floodlight (30,8kg for three bricks version, 23kg for two bricks version, 18,7kg for two bricks version light bracket and 9,6kg for 1 brick version), highly resistant (IP66, IK08), available with 11 excellent lighting distributions plus louvre options. To be completed with compact and light gearbox IP66 with RDM-DMX or DALI control interface. Premium gearbox housing made of die-cast aluminum with “fishbone” fins to guarantee a better thermal management in all permitted mounting positions and a full working range at ambient temperature -40°C/+45°C. Equipped in the frontal panel with LED signal to indicate the status of the gearbox. Lifetime greater than 50khrs. Surge level 10kV for Common mode and differential mode. Hot restrike and flicker-free up to 1000 frames per second (required for 100-50% output level) for HDTV camera. The gearbox can be installed on the bracket of the floodlight, using the mounting accessory, inside the mast or remotely up to 200m from the floodlight. A Performance alternative gearbox is available to a similar specification - see data sheets for details.
Available as a 1 module Standalone luminaire with 1 channel 600W gearbox included and factory pre-wired and mounted on the rear of the luminaire.
Maximum driving current must be selected according to the constraint from the targeted application, advice may be obtained from your local representative or using myProduct configurator.
As Thorn Altis Gen5
