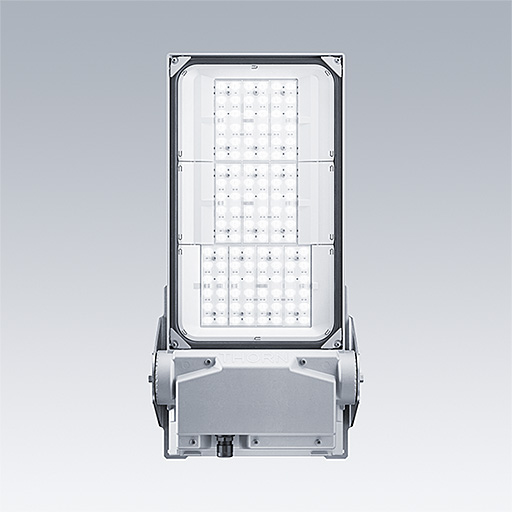

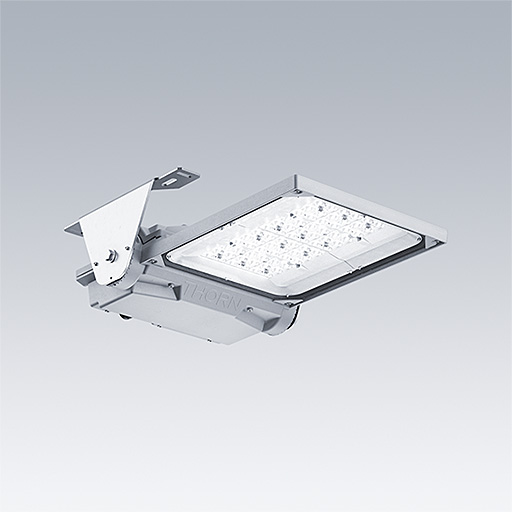

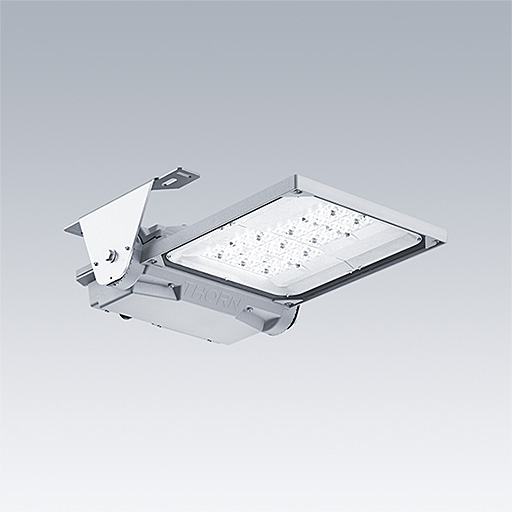

Areaflood Pro 2, Tunnel
A compact tunnel luminaire family, housing LED quantities and optics to suit all tunnel lighting zones
- Three luminaire sizes offering between 4,000 - 52,000 lumen output. Tested to withstand corrosive tunnel environments. Optional low smoke, zero halogen flying leads including connections for DALI control systems.
- Integrating THORN's in-house designed and developed optic portfolio including counterbeam tunnel lighting options.
- Purpose designed mounting brackets provide compatibility with most cable ladders and cable trays giving 3G vibration resistance.
- Suitable for control by DALI tunnel control systems.
- On-board drivers allow for simple and fast installation and connection. Designed for easy maintainability.
- Product lifetime up to 100,000HR L98 depending on operating environment.
Materials and Finish
Luminaire body manufactured in die-cast aluminium EN AC-44300
Robust solution with excellent corrosion resistance of C5 according to ISO 9223:2012 1400hours salt spray tested
Finished in light grey (close to RAL9006).
Bespoke mounting brackets required for installation on stainless steel structures available on request.
Toughened Glass
High mechanical resistance of IK08 and IP66
Installation and Mounting
Versatile adjustable mounting brackets to suit common sizes of galvanised cable ladders and cable trays.
Mounting to suit stainless steel structures available by request.
Specification
To specify state:
Family of luminaires for all lighting zones in tunnels with options for all tunnel lighting methodologies.
Available in Electrical Class I and Class II.
DALI dimmable on-board drivers with access for maintenance.
Built in surge protection, with additional surge protection option available
CCT: 730 / 740
As Thorn AreaFlood Pro 2 Tunnel
- New Product
▼ Areaflood Pro 2, Tunnel
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP2 L 144L35-740 TUN CB2-LV HFX CL2 -> | 72 | 10600 | LED | 13.40 | 96800468 | ||||
| AFP2 M 96L50 740 TUN CB2-LV HFX CL2 -> | 72 | 10600 | LED | 9.89 | 96800467 | ||||
| AFP2 S 48L50-740 TUN CB2-LV HFX CL2 -> | 72 | 10600 | LED | 7.38 | 96800466 |
