  • Axyl Trim — AXYL TRIM S GRID 1L940 A/S HF GY

Axyl Trim / AXYL TRIM S GRID 1L940 A/S HF GY

96700369

▼ Data Sheet

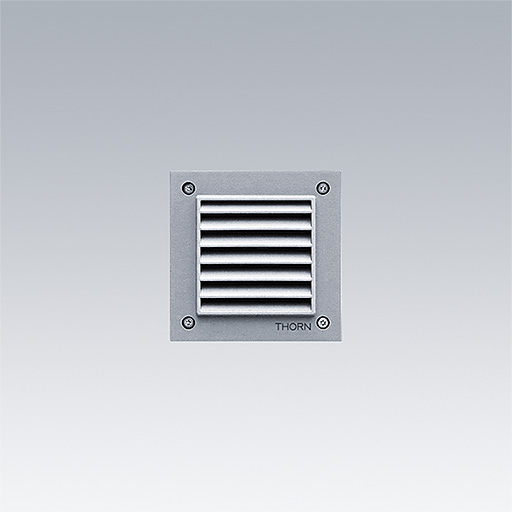

Axyl Trim, grid facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class I electrical.. Fixed output LED driver. Recessed box 96700399 to be order separately, IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +50°C. Complete with 4000K LED. Recessed box 96700399 to be order separately.

Dimensions: 106 x 106 x 98 mm
Luminaire input power: 3.4 W
Luminaire luminous flux: 23 lm
Luminaire efficacy: 7 lm/W
Weight: 0.6 kg

Mode selection
  • Poloha světelného zdroje:STD – standard
  • Světelný zdroj:LED
  • Světelný tok*:23 lm
  • Světelný výkon svítidel*:7 lm/W
  • Index podáni barev - CRI min.:90
  • Teplota chromatičnosti*:4000 Kelvin
  • Barevná tolerance v místě (MacAdam):3
  • Vyměřovací (jmenovitá) doba životnosti (B10)*:L80 70000 h při/u 25 °C
  • Předřadník:1x LED_DRV
  • Příkon svítidla*:3,4 W Výkonový faktor = 0,4
  • Řízení:FIX
  • LED
  • CE
  • IK06
  • IP65
  • SC1
