  • Axyl Opera — AXYL OPERA L WO 3L RGBW WB PWM SS

Axyl Opera / AXYL OPERA L WO 3L RGBW WB PWM SS

96701171

▼ Data Sheet

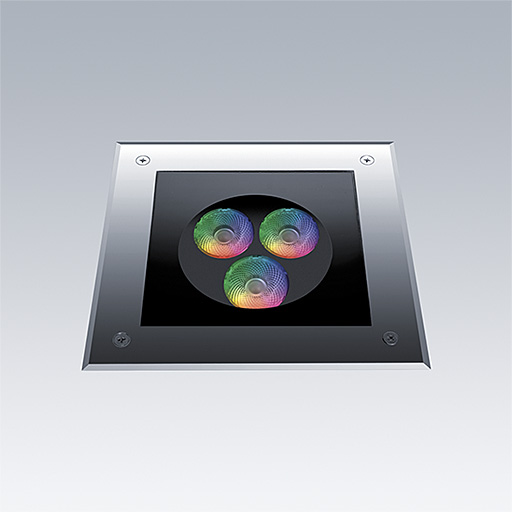

Axyl Opera, RGBW versions, a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical.. fixed output control gear LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +40°C...

Dimensions: 200 x 200 x 135 mm
Luminaire input power: 15 W
Luminaire luminous flux: 467 lm
Luminaire efficacy: 31 lm/W
Weight: 3.99 kg

Mode selection
  • Poloha světelného zdroje:STD – standard
  • Světelný zdroj:LED
  • Světelný tok*:467 lm
  • Světelný výkon svítidel*:31 lm/W
  • Index podáni barev - CRI min.:-1
  • Barevná tolerance v místě (MacAdam):3
  • Vyměřovací (jmenovitá) doba životnosti (B10)*:L80 70000 h při/u 25 °C
  • Předřadník:1x LED_DRV
  • Příkon svítidla*:15 W
  • Řízení:Fixed output
  • LED
  • CE
  • IK09
  • IP67
  • SC3

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
