  • Axyl Opera — AXYL OPERA XL WO 5L RGBW WB PWM SS

Axyl Opera / AXYL OPERA XL WO 5L RGBW WB PWM SS

96701058

▼ Data Sheet

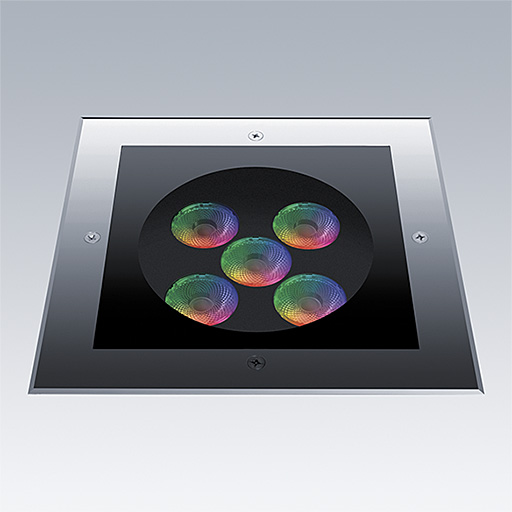

Axyl Opera, RGBW versions, a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical.. fixed output control gear LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +45°C...

Dimensions: 275 x 275 x 245 mm
Luminaire input power: 23 W
Luminaire luminous flux: 764 lm
Luminaire efficacy: 33 lm/W
Weight: 8.19 kg

Mode selection
  • Poloha světelného zdroje:STD – standard
  • Světelný zdroj:LED
  • Světelný tok*:764 lm
  • Světelný výkon svítidel*:33 lm/W
  • Index podáni barev - CRI min.:-1
  • Barevná tolerance v místě (MacAdam):3
  • Vyměřovací (jmenovitá) doba životnosti (B10)*:L80 70000 h při/u 25 °C
  • Předřadník:1x LED_DRV
  • Příkon svítidla*:23 W
  • Řízení:Fixed output
  • LED
  • CE
  • IK09
  • IP67
  • SC3
