Voyager Monitoring
Voyager EmGuard
VOYAGER emGuard
Article number: 96802177
EAN number: 9010757536456
Basic monitoring module for self-contai
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Delivery time on request
Technical Data
Electrical Properties
Safety Class
SC2
Emergency included
No
Lum Data
No
Light Distribution
Light Distribution
STD - standard
Physical Characteristics
Weight
0.051 kg
Degree of protection
IP20
overviewFeatures_indoor
Degree of protection
IP20
Norms and Standards
Certificates
Drawings
Dimensional sketch
Downloads
Voyager EmGuard
96802177 VOYAGER emGuard

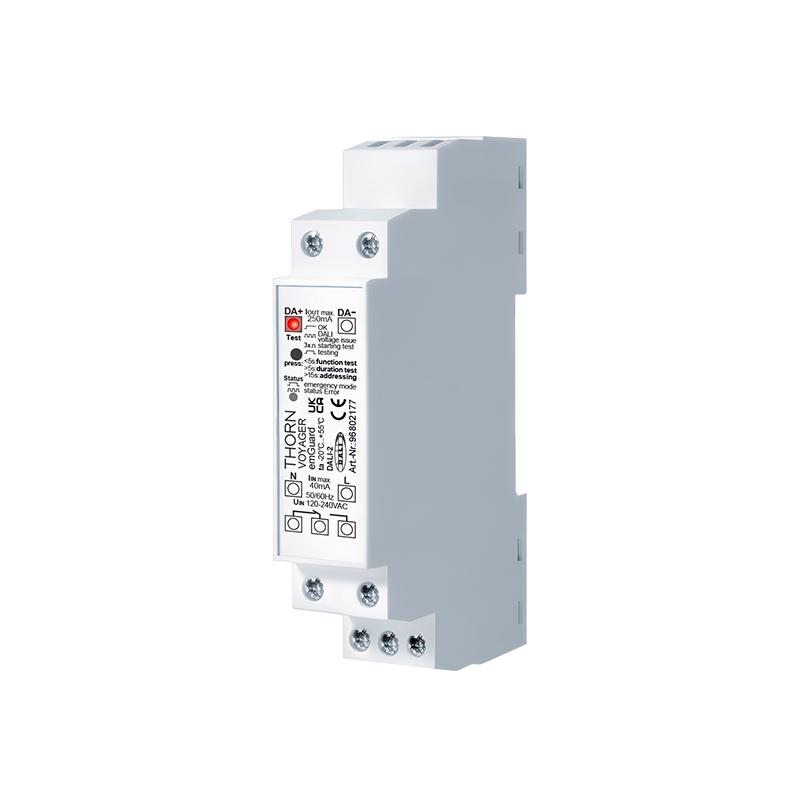

VOYAGER emGuard is a DALI-2 based emergency lighting controller designed for centralized monitoring according to EN 62034 ATS Type-P.
It supervises up to 64 autotest self-contained emergency luminaires, displays their status via LED, and allows starting function and duration tests via a device test button.
With integrated 220 mA DALI bus supply, changeover relay, wide-range 120–240 V input, DIN-rail mounting and surge immunity, it ensures reliable automated emergency lighting monitoring and system integrity.
