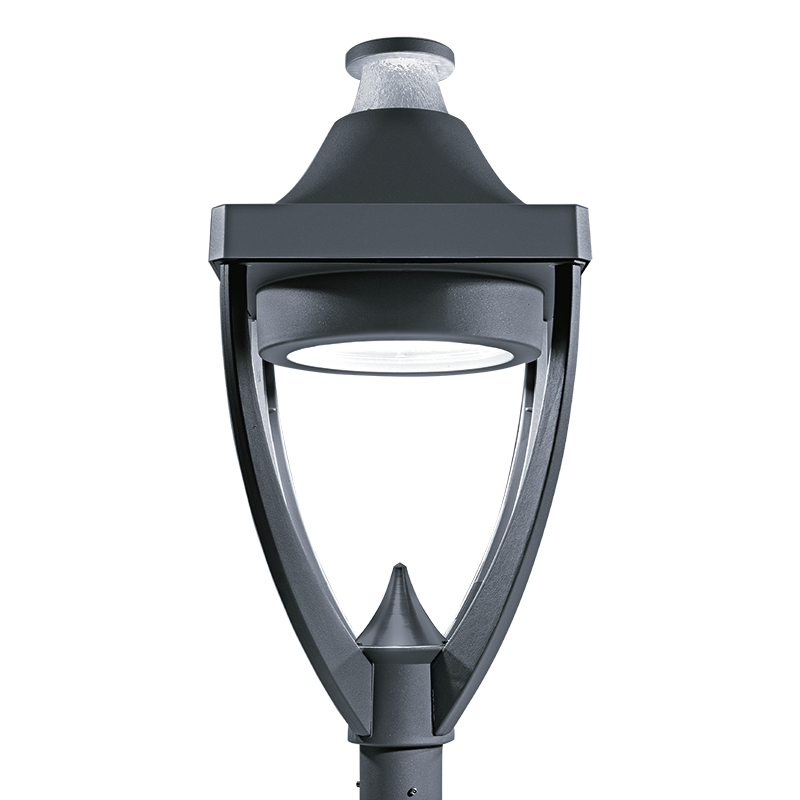

Legend Post top, closed optic, LED
LEGEND 36L70 NR 722 BP CL2 T60 U1
Article number: 96669728
EAN number: 3607640604383
Technical Data
Electrical Properties
EEC
E
Luminaire input power
77 W
Power factor
0.97
Rated voltage
230 - 240 V
Driver
Driver 1: 1 x LCO 90/200-1050/165 NF C ADV3
Safety Class
SC2
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
7243 lm
Luminaire efficacy
94 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
5
Colour Rendering Index min.
70
Light Distribution
STD - standard
Physical Characteristics
Dimensions
446x446x999 mm
Mounting type
Outdoor post top
Length
446 mm
Width
446 mm
Height
999 mm
Weight
17.5 kg
Impact strength
IK08
Degree of protection
IP65
Reflector Color
Die-cast
Windage (Scx)
0.14 m2
Maintenance and Protection
Rated useful life (B10)
L98 100000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
7243 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Legend Post top, closed optic, LED
96669728 LEGEND 36L70 NR 722 BP CL2 T60 U1
A modern heritage post top LED lantern with closed optic. Electronic,. Class II electrical, IP65, IK08. Body: Die-cast aluminium powder coated grey 900 textured finish (close to RAL 7043). Enclosure: toughened glass. Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode. Complete with 2200K LED.
Dimensions: 446 x 446 x 999 mm
Weight: 17.5 kg
Scx: 0.14 m²
