Escort

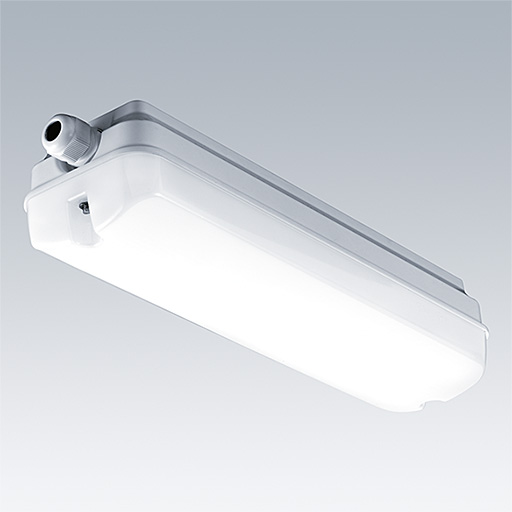

A robust and durable bulkhead for surface mounting, sealed to IP65
- Odolná konstrukce z lité slitiny pro použití jak v interiérech, tak v exteriérech
- Použití v průmyslu nebo na veřejnosti
- Je dodáváno včetně světelných zdrojů
- K dispozici jsou také nouzové verze (viz řada Voyager Escort)
Materials and Finish
Body: cast aluminium, finished white
Diffuser: opal polycarbonate with vandal resistant screws
Installation and Mounting
Direct wall or ceiling mounting. Drill points on rear for ceiling/wall box/BESA mounting. Rear cable entry hole and mounting points pre-drilled and sealed with rubber grommets. Ø20mm cable entry at either end and 4 fixing points. 3 way terminal block, 2x2.5mm² capacity. Cable gland and blanking grommets (2) supplied.
Specification
To specify state:
Self-contained exterior LED bulkhead with either selectable lumen output with emergency option or DALI dimming. Cast aluminium body and opal polycarbonate diffuser. IP65.
As Thorn Escort
New Product
LumExpress Product
eControl Product
▼ Escort
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| ESCORT LED I-SLCT 800/1000-840 E3 OP WH | 8 | 800 | LED | 1.20 | 96630598 | ||||
| ESCORT LED 1000-840 HFIX EC OP WH | 10 | 1000 | LED | 1.20 | 96630600 | ||||
| ESCORT LED I-SLCT 800/1000-840 OP WH | 8 | 800 | LED | 1.20 | 96630597 |
