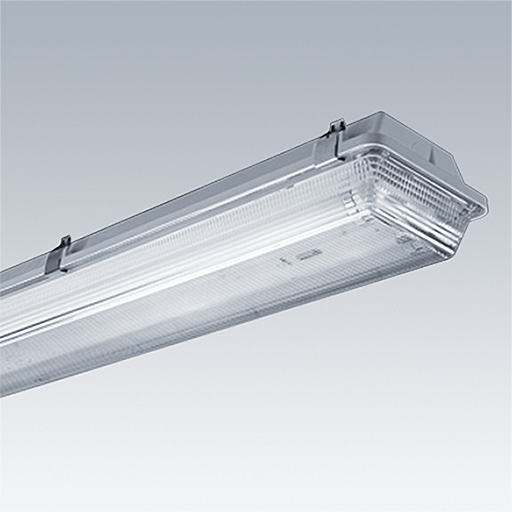

Petrelux ExEn
An ATEX approved Zone 2 (Category 3) enclosed break (EExn) luminaire for use with T26 (T8) fluorescent lamps
- Upínací předřadník umožňující rychlou údržbu
- Upínací prvky z nerezové oceli zajišťují spolehlivé utěsnění difuzoru
Materials and Finish
Canopy: glass reinforced polyester - grey finish
Diffuser: injection moulded clear prismatic, UV stabilised polycarbonate
Gear Tray: steel - white enamel finish.
Toggles: stainless steel.
Installation and Mounting
2 x 20mm holes for cable entry - sealing plug supplied for one hole - located at end of fitting.
Fittings can be screw fixed direct to mounting surface - using suitable sealing and pressure washers - or snap fitted into stainless steel fixing clips available as an accessory.
Specification
To specify state:
ATEX Certificated luminaire (Zone 2, Category 3 hazardous areas) suitable for 18/36/58W T26 (T8) linear fluorescent lamps. Glass reinforced polyester canopy with UV stablised polycarbonate prismatic diffuser and stainless steel toggles.
As Thorn Petrelux ExEn.
▼ Petrelux ExEn Luminaires
| Description | Type | Socket | Wt (kg) | SAP Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| PETRELUX ExEn 2x18w T26 HF | FD | G13 | 2.40 | 96200466 | |||||
| PETRELUX ExEn 2x36w T26 HF | FD | G13 | 4.10 | 96200467 | |||||
| PETRELUX ExEn 2x58w T26 HF | FD | G13 | 5.50 | 96200468 |
▼ Petrelux ExEn Emergency Luminaires
| Description | Type | Socket | Wt (kg) | SAP Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| PETRELUX ExEn 2x36w T26 HF E3 | FD | G13 | 5.10 | 96200469 | |||||
| PETRELUX ExEn 2x58w T26 HF E3 | FD | G13 | 6.80 | 96200470 |
