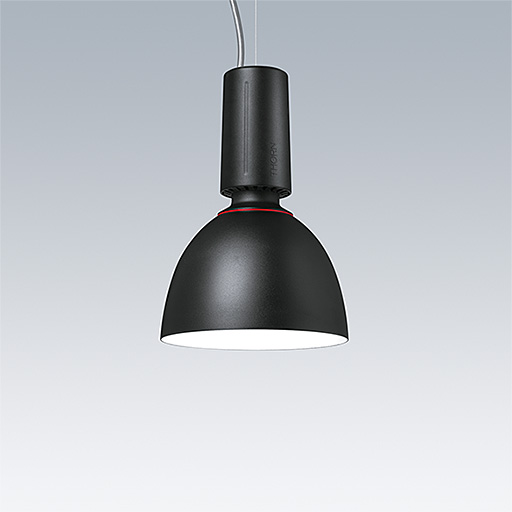

Glacier II
Moderní a účinné dekorativní LED závěsné svítidlo s vysokou osvětlovací účinností
- Vysoce výkonné (91 - 124 lm/W) dekorativní svítidlo nabízí účinnou alternativu k tradičním závěsným svítidlům HID
- K dispozici ve dvou velikostech a ve dvou barvách
- Možnost volby ze 4 reflektorů vyhovujících široké řadě aplikací
- Stropní růžice ve stejné povrchové úpravě doplňuje vzhled
- Contus trunking compatibility through optional adapter accessory
Materials and Finish
Housing: die-cast aluminium with satin grey/black finish
Reflector: polycarbonate prismatic, glass prismatic, opal glass or grey/black spun aluminium
Suspension wire: braided steel
Ceiling rose (to be ordered separately): die-cast aluminium with satin grey/black finish and white plastic
Contus adapter (to be ordered separately): pre-coated roll form steel, white (similar to RAL9016)
Installation and Mounting
Suspension: adjustable quick-lock 2.5m single wire suspension (supplied). Similar length of pre-installed braided flame retardant silicon cable 5x0.75mm² (6x0.75mm² for E3). Ceiling rose option (ordered separately) 2x5x2.5mm² terminal block.
Contus trunking: using the Contus adapter accessory (ordered separately).
Specification
Při specifikaci uvádějte:
Velké dekorativní LED závěsné svítidlo ve dvou velikostech s tělesem z hliníku litého pod tlakem na jednoduchém lankovém závěsu. S polykarbonátovým prizmatickým/skleněným prizmatickým/opálovým skleněným/šedým/černým odstředivě litým hliníkovým reflektorem. Světelný výkon 3000-9500 lumenů, účinnost 91-124lm/W, CRI>80.
Jako Thorn Glacier II LED.
New Product
LumExpress Product
eControl Product
▼ Glacier II, hliníkový reflektor
▼ Glacier II, hliníkový reflektor, basicDIM
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| GLAC2 L LED2 7800-830 BC EC BK AL BK | 72 | 7550 | LED | 4.80 | 96632150 | ||||
| GLAC2 L LED2 7800-830 BC EC GY AL GY | 72 | 7550 | LED | 4.80 | 96632151 | ||||
| GLAC2 L LED2 7800-840 BC EC BK AL BK | 72 | 7800 | LED | 4.80 | 96632152 | ||||
| GLAC2 L LED2 7800-840 BC EC GY AL GY | 72 | 7800 | LED | 4.80 | 96632153 | ||||
| GLAC2 L LED3 3000-830 BC EC BK AL BK | 27 | 2800 | LED | 4.80 | 96632142 | ||||
| GLAC2 L LED3 3000-830 BC EC GY AL GY | 27 | 2800 | LED | 4.80 | 96632143 | ||||
| GLAC2 L LED3 3000-840 BC EC BK AL BK | 27 | 2900 | LED | 4.80 | 96632144 | ||||
| GLAC2 L LED3 3000-840 BC EC GY AL GY | 27 | 2900 | LED | 4.80 | 96632145 | ||||
| GLAC2 L LED3 5000-830 BC EC BK AL BK | 45 | 4800 | LED | 4.80 | 96632146 | ||||
| GLAC2 L LED3 5000-830 BC EC GY AL GY | 45 | 4800 | LED | 4.80 | 96632147 | ||||
| GLAC2 L LED3 5000-840 BC EC BK AL BK | 45 | 5000 | LED | 4.80 | 96632148 | ||||
| GLAC2 L LED3 5000-840 BC EC GY AL GY | 45 | 5000 | LED | 4.80 | 96632149 |
▼ Glacier II, prizmatický skleněný reflektor
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| GLAC2 L LED2 9500-830 HFIX EC BK GL PR | 72 | 9200 | LED | 6.80 | 96632417 | ||||
| GLAC2 L LED2 9500-830 HFIX EC GY GL PR | 72 | 9200 | LED | 6.80 | 96632418 | ||||
| GLAC2 L LED2 9500-840 HFIX EC BK GL PR | 72 | 9500 | LED | 6.80 | 96632419 | ||||
| GLAC2 L LED2 9500-840 HFIX EC GY GL PR | 72 | 9500 | LED | 6.80 | 96632420 | ||||
| GLAC2 L LED3 3500-830 HFIX EC BK GL PR | 27 | 3400 | LED | 6.80 | 96632409 | ||||
| GLAC2 L LED3 3500-830 HFIX EC GY GL PR | 27 | 3400 | LED | 6.80 | 96632410 | ||||
| GLAC2 L LED3 3500-840 HFIX EC BK GL PR | 27 | 3500 | LED | 6.80 | 96632411 | ||||
| GLAC2 L LED3 3500-840 HFIX EC GY GL PR | 27 | 3500 | LED | 6.80 | 96632412 | ||||
| GLAC2 L LED3 6000-830 HFIX EC BK GL PR | 45 | 5750 | LED | 6.80 | 96632413 | ||||
| GLAC2 L LED3 6000-830 HFIX EC GY GL PR | 45 | 5750 | LED | 6.80 | 96632414 | ||||
| GLAC2 L LED3 6000-840 HFIX EC BK GL PR | 45 | 6000 | LED | 6.80 | 96632415 | ||||
| GLAC2 L LED3 6000-840 HFIX EC GY GL PR | 45 | 6000 | LED | 6.80 | 96632416 |
▼ Glacier II, prizmatický skleněný reflektor, basicDIM
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| GLAC2 L LED2 9500-830 BC EC BK GL PR | 72 | 9200 | LED | 6.80 | 96632162 | ||||
| GLAC2 L LED2 9500-830 BC EC GY GL PR | 72 | 9200 | LED | 6.80 | 96632163 | ||||
| GLAC2 L LED2 9500-840 BC EC BK GL PR | 72 | 9500 | LED | 6.80 | 96632164 | ||||
| GLAC2 L LED2 9500-840 BC EC GY GL PR | 72 | 9500 | LED | 6.80 | 96632165 | ||||
| GLAC2 L LED3 3500-830 BC EC BK GL PR | 27 | 3400 | LED | 6.80 | 96632154 | ||||
| GLAC2 L LED3 3500-830 BC EC GY GL PR | 27 | 3400 | LED | 6.80 | 96632155 | ||||
| GLAC2 L LED3 3500-840 BC EC BK GL PR | 27 | 3500 | LED | 6.80 | 96632156 | ||||
| GLAC2 L LED3 3500-840 BC EC GY GL PR | 27 | 3500 | LED | 6.80 | 96632157 | ||||
| GLAC2 L LED3 6000-830 BC EC BK GL PR | 45 | 5750 | LED | 6.80 | 96632158 | ||||
| GLAC2 L LED3 6000-830 BC EC GY GL PR | 45 | 5750 | LED | 6.80 | 96632159 | ||||
| GLAC2 L LED3 6000-840 BC EC BK GL PR | 45 | 6000 | LED | 6.80 | 96632160 | ||||
| GLAC2 L LED3 6000-840 BC EC GY GL PR | 45 | 6000 | LED | 6.80 | 96632161 |
▼ Glacier II, opálový skleněný reflektor
▼ Glacier II, opálový skleněný reflektor, basicDIM
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| GLAC2 L LED2 9400-830 BC EC BK GL OP | 72 | 9100 | LED | 6.50 | 96632174 | ||||
| GLAC2 L LED2 9400-830 BC EC GY GL OP | 72 | 9100 | LED | 6.50 | 96632175 | ||||
| GLAC2 L LED2 9400-840 BC EC BK GL OP | 72 | 9400 | LED | 6.50 | 96632176 | ||||
| GLAC2 L LED2 9400-840 BC EC GY GL OP | 72 | 9400 | LED | 6.50 | 96632177 | ||||
| GLAC2 L LED3 3500-830 BC EC BK GL OP | 27 | 3450 | LED | 6.50 | 96632166 | ||||
| GLAC2 L LED3 3500-830 BC EC GY GL OP | 27 | 3450 | LED | 6.50 | 96632167 | ||||
| GLAC2 L LED3 3500-840 BC EC BK GL OP | 27 | 3550 | LED | 6.50 | 96632168 | ||||
| GLAC2 L LED3 3500-840 BC EC GY GL OP | 27 | 3550 | LED | 6.50 | 96632169 | ||||
| GLAC2 L LED3 6000-830 BC EC BK GL OP | 45 | 5850 | LED | 6.50 | 96632170 | ||||
| GLAC2 L LED3 6000-830 BC EC GY GL OP | 45 | 5850 | LED | 6.50 | 96632171 | ||||
| GLAC2 L LED3 6000-840 BC EC BK GL OP | 45 | 6050 | LED | 6.50 | 96632172 | ||||
| GLAC2 L LED3 6000-840 BC EC GY GL OP | 45 | 6050 | LED | 6.50 | 96632173 |
▼ Glacier II, prizmatický polykarbonátový reflektor
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| GLAC2 L LED2 9300-830 HFIX EC BK PC PR | 72 | 9000 | LED | 5.00 | 96632441 | ||||
| GLAC2 L LED2 9300-830 HFIX EC GY PC PR | 72 | 9000 | LED | 5.00 | 96632442 | ||||
| GLAC2 L LED2 9300-840 HFIX EC BK PC PR | 72 | 9300 | LED | 5.00 | 96632443 | ||||
| GLAC2 L LED2 9300-840 HFIX EC GY PC PR | 72 | 9300 | LED | 5.00 | 96632444 | ||||
| GLAC2 L LED3 3500-830 HFIX EC BK PC PR | 27 | 3400 | LED | 5.00 | 96632433 | ||||
| GLAC2 L LED3 3500-830 HFIX EC GY PC PR | 27 | 3400 | LED | 5.00 | 96632434 | ||||
| GLAC2 L LED3 3500-840 HFIX EC BK PC PR | 27 | 3500 | LED | 5.00 | 96632435 | ||||
| GLAC2 L LED3 3500-840 HFIX EC GY PC PR | 27 | 3500 | LED | 5.00 | 96632436 | ||||
| GLAC2 L LED3 6000-830 HFIX EC BK PC PR | 45 | 5700 | LED | 5.00 | 96632437 | ||||
| GLAC2 L LED3 6000-830 HFIX EC GY PC PR | 45 | 5700 | LED | 5.00 | 96632438 | ||||
| GLAC2 L LED3 6000-840 HFIX EC BK PC PR | 45 | 5950 | LED | 5.00 | 96632439 | ||||
| GLAC2 L LED3 6000-840 HFIX EC GY PC PR | 45 | 5950 | LED | 5.00 | 96632440 |
▼ Glacier II, prizmatický polykarbonátový reflektor, basicDIM
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| GLAC2 L LED2 9300-830 BC EC BK PC PR | 72 | 9000 | LED | 5.00 | 96632186 | ||||
| GLAC2 L LED2 9300-830 BC EC GY PC PR | 72 | 9000 | LED | 5.00 | 96632187 | ||||
| GLAC2 L LED2 9300-840 BC EC BK PC PR | 72 | 9300 | LED | 5.00 | 96632188 | ||||
| GLAC2 L LED2 9300-840 BC EC GY PC PR | 72 | 9300 | LED | 5.00 | 96632189 | ||||
| GLAC2 L LED3 3500-830 BC EC BK PC PR | 27 | 3400 | LED | 5.00 | 96632178 | ||||
| GLAC2 L LED3 3500-830 BC EC GY PC PR | 27 | 3400 | LED | 5.00 | 96632179 | ||||
| GLAC2 L LED3 3500-840 BC EC BK PC PR | 27 | 3500 | LED | 5.00 | 96632180 | ||||
| GLAC2 L LED3 3500-840 BC EC GY PC PR | 27 | 3500 | LED | 5.00 | 96632181 | ||||
| GLAC2 L LED3 6000-830 BC EC BK PC PR | 45 | 5700 | LED | 5.00 | 96632182 | ||||
| GLAC2 L LED3 6000-830 BC EC GY PC PR | 45 | 5700 | LED | 5.00 | 96632183 | ||||
| GLAC2 L LED3 6000-840 BC EC BK PC PR | 45 | 5950 | LED | 5.00 | 96632184 | ||||
| GLAC2 L LED3 6000-840 BC EC GY PC PR | 45 | 5950 | LED | 5.00 | 96632185 |
▼ Glacier II, nouzové provedení, hliníkový reflektor
▼ Glacier II, nouzové provedení, hliníkový reflektor, basicDIM
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| GLAC2 L LED3 3000-830 BC E3 BK AL BK | 27 | 2800 | LED | 5.10 | 96632190 | ||||
| GLAC2 L LED3 3000-830 BC E3 GY AL GY | 27 | 2800 | LED | 5.10 | 96632191 | ||||
| GLAC2 L LED3 3000-840 BC E3 BK AL BK | 27 | 2900 | LED | 5.10 | 96632192 | ||||
| GLAC2 L LED3 3000-840 BC E3 GY AL GY | 27 | 2900 | LED | 5.10 | 96632193 | ||||
| GLAC2 L LED3 5000-830 BC E3 BK AL BK | 45 | 4800 | LED | 5.10 | 96632194 | ||||
| GLAC2 L LED3 5000-830 BC E3 GY AL GY | 45 | 4800 | LED | 5.10 | 96632195 | ||||
| GLAC2 L LED3 5000-840 BC E3 BK AL BK | 45 | 5000 | LED | 5.10 | 96632196 | ||||
| GLAC2 L LED3 5000-840 BC E3 GY AL GY | 45 | 5000 | LED | 5.10 | 96632197 |
▼ Glacier II, nouzové provedení, prizmatický skleněný reflektor
▼ Glacier II, nouzové provedení, prizmatický skleněný reflektor, basicDIM
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| GLAC2 L LED3 3500-830 BC E3 BK GL PR | 27 | 3400 | LED | 7.10 | 96632198 | ||||
| GLAC2 L LED3 3500-830 BC E3 GY GL PR | 27 | 3400 | LED | 7.10 | 96632199 | ||||
| GLAC2 L LED3 3500-840 BC E3 BK GL PR | 27 | 3500 | LED | 7.10 | 96632200 | ||||
| GLAC2 L LED3 3500-840 BC E3 GY GL PR | 27 | 3500 | LED | 7.10 | 96632201 | ||||
| GLAC2 L LED3 6000-830 BC E3 BK GL PR | 45 | 5750 | LED | 7.10 | 96632202 | ||||
| GLAC2 L LED3 6000-830 BC E3 GY GL PR | 45 | 5750 | LED | 7.10 | 96632203 | ||||
| GLAC2 L LED3 6000-840 BC E3 BK GL PR | 45 | 6000 | LED | 7.10 | 96632204 | ||||
| GLAC2 L LED3 6000-840 BC E3 GY GL PR | 45 | 6000 | LED | 7.10 | 96632205 |
▼ Glacier II, nouzové provedení, prizmatický polykarbonátový reflektor
▼ Glacier II, nouzové provedení, prizmatický polykarbonátový reflektor, basicDIM
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| GLAC2 L LED3 3500-830 BC E3 BK PC PR | 27 | 3400 | LED | 5.30 | 96632206 | ||||
| GLAC2 L LED3 3500-830 BC E3 GY PC PR | 27 | 3400 | LED | 5.30 | 96632207 | ||||
| GLAC2 L LED3 3500-840 BC E3 BK PC PR | 27 | 3500 | LED | 5.30 | 96632208 | ||||
| GLAC2 L LED3 3500-840 BC E3 GY PC PR | 27 | 3500 | LED | 5.30 | 96632209 | ||||
| GLAC2 L LED3 6000-830 BC E3 BK PC PR | 45 | 5700 | LED | 5.30 | 96632210 | ||||
| GLAC2 L LED3 6000-830 BC E3 GY PC PR | 45 | 5700 | LED | 5.30 | 96632211 | ||||
| GLAC2 L LED3 6000-840 BC E3 BK PC PR | 45 | 5950 | LED | 5.30 | 96632212 | ||||
| GLAC2 L LED3 6000-840 BC E3 GY PC PR | 45 | 5950 | LED | 5.30 | 96632213 |
▼ Glacier II - Příslušenství
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| THORN CEILING ROSE BK BK | 0.50 | 96632738 | |||||||
| THORN CEILING ROSE BK WH | 0.50 | 96629782 | |||||||
| THORN CEILING ROSE GY GY | 0.50 | 96632740 | |||||||
| THORN CEILING ROSE GY WH | 0.50 | 96205307 | |||||||
| THORN CEILING ROSE WH WH | 0.50 | 96632739 |
